Explain System Diagrams: A Clear Guide for Students

09 Jun Explain System Diagrams: A Clear Guide for Students

TL;DR:

• System diagrams visually represent system components, relationships, and data flows to simplify complex processes. They are essential tools in IB ESS coursework for illustrating boundaries, dynamics, and causal relationships within environmental systems. Effective diagrams are layered, precisely labeled, and tailored to specific purposes to enhance understanding and academic success.

System diagrams are structured visual models that depict the components, relationships, and data flows within a system, making complex processes easier to understand and communicate. Whether you are working on an IB Environmental Systems and Societies (ESS) internal assessment, preparing a class presentation, or building an extended essay argument, knowing how to explain system diagrams clearly gives you a real academic advantage. Tools like Miro, Lucidchart, and AFFiNE have made creating these diagrams more accessible than ever. This guide walks you through the types, reading strategies, creation best practices, and real academic applications of system diagrams so you can use them with confidence.

What are system diagrams and why do they matter?

A system diagram is a visual representation that shows how parts of a system connect, interact, and exchange information or energy. The term “system diagram” is broad. Professionals and academics also use more specific names depending on the diagram’s purpose: data flow diagrams, stock-and-flow diagrams, context diagrams, and sequence diagrams are all recognized types within this family.

The core value of any system diagram is clarity. Instead of reading three paragraphs explaining how carbon moves through an ecosystem, a well-drawn diagram communicates the same idea in seconds. For IB ESS students, this matters because examiners reward precise, well-labeled visual models in both internal assessments and extended essays. Understanding systems modeling concepts is one of the fastest ways to strengthen your coursework.

System diagrams also support systems thinking, which is a core skill in environmental education. When you draw a diagram of a water cycle, a food web, or a pollution pathway, you are not just illustrating facts. You are showing cause and effect, feedback loops, and the boundaries of a system. That analytical depth is exactly what IB examiners look for.

What are the common types of system diagrams?

System diagrams answer different questions depending on their type: context diagrams answer who is inside or outside the system, container diagrams show deployable or structural parts, sequence diagrams show the order of events, and data flow diagrams show how data moves. Choosing the right type for your purpose prevents confusion and keeps your work focused.

Here is a breakdown of the five types most relevant to students and educators:

• System context diagram (Level 0 DFD): Shows the boundary between a system and its environment. It features one central system bubble surrounded by external actors with arrows showing information exchange. Use this to define what is inside and outside your system before adding any detail.
• Container diagram: Breaks the system into its main structural parts, such as databases, applications, or subsystems. Useful for engineering and computer science projects.
• Sequence diagram: Shows the order in which events or interactions occur between components. Helpful for modeling processes that unfold over time, like nutrient cycling.
• Data flow diagram (DFD): Tracks how data or materials move through a system. Common in both computer science and environmental science contexts.
• Stock-and-flow diagram: Represents accumulations (stocks) and rates of change (flows). Stocks change only through associated flows measured as quantity per unit time, which makes this diagram type ideal for modeling environmental dynamics like population growth or carbon accumulation.

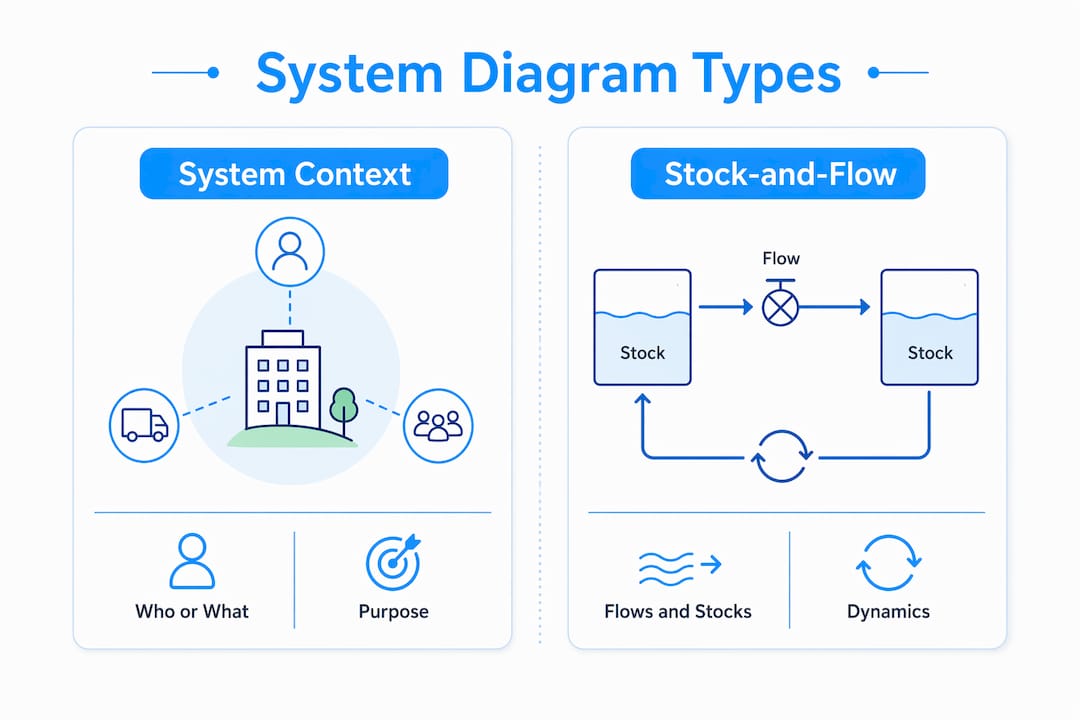

The table below compares these types at a glance:

For most ESS coursework, you will rely most heavily on system context diagrams and stock-and-flow diagrams. These two types capture both the boundaries of an environmental system and its dynamic behavior over time.

How to read system diagrams effectively

Reading a system diagram well is a skill, not just a habit. Effective diagrams allow viewers to understand main components and data flow within about two minutes. If a diagram takes longer than that to decode, it is either too complex or too poorly labeled. Stakeholders should ideally grasp the core data flow in roughly 30 seconds, which means every element on the diagram must earn its place.

Follow these steps when you encounter an unfamiliar system diagram:

• Identify the system boundary first. Look for a box, circle, or border that separates the system from its environment. Everything inside is part of the system. Everything outside is an external actor or input.
• Read the labels on arrows before anything else. Unlabeled or vague arrows reduce clarity significantly because arrows carry critical information about what is moving, in which direction, and why. If arrows say “data” or nothing at all, the diagram has a labeling problem.
• Distinguish inputs from outputs. Arrows pointing into the system represent inputs. Arrows pointing out represent outputs. Arrows that loop back indicate feedback.
• Look for stocks and flows in environmental diagrams. Rectangles or boxes often represent stocks (accumulated quantities). Pipes or thick arrows represent flows (rates of change). Clouds or source symbols represent sources and sinks outside the system.
• Check for a legend or key. Consistent symbols reduce cognitive load. If the diagram uses different shapes for similar components without explanation, treat that as a red flag.

Pro Tip: When reading a new diagram for the first time, cover the title and try to describe what the system does based only on the arrows and labels. If you cannot do it, the diagram needs improvement. This exercise also sharpens your own diagram-creation skills.

A common pitfall for students is trying to read a diagram from left to right like a sentence. System diagrams are not linear. Start at the system boundary, find the main process or stock, and then trace the flows outward.

Best practices for creating clear and educational system diagrams

Creating a good system diagram is about making decisions, not just drawing shapes. The most effective approach is to build your diagram in layers, starting broad and adding detail only where necessary.

1. Start with a system context diagram. Before drawing any internal components, define what is inside and outside your system. Iterative layering from boundary to detail prevents over-documenting and keeps your diagram focused. For an ESS project on deforestation, your context diagram might show the forest ecosystem as the central system, with external actors like logging companies, rainfall, and government policy.

2. Use one symbol per component type. Consistent symbols and labels reduce cognitive load. Pick a rectangle for processes, an oval for external entities, and an arrow for flows. Do not switch to a diamond for a process halfway through just because it looks different.

3. Label every arrow with a specific description. Generic labels like “data” or “input” tell the reader nothing. Write “carbon dioxide released” or “runoff enters river” instead. Strong labeling discipline on arrows is critical to communicate precise data flows and causal links, especially in academic review contexts.

4. Separate diagram types rather than combining them. Select the minimal set of diagram types that address your audience’s main questions. One overloaded diagram that tries to show context, sequence, and data flow simultaneously will confuse readers. Use two or three focused diagrams instead.

5. Apply visual hierarchy. Place the most important component at the center or top. Use size and position to signal importance. Readers naturally scan from the center outward, so your primary stock or process should be visually dominant.

6. Test your diagram with a peer. Ask a classmate to describe what the system does after looking at your diagram for 60 seconds. Their answer tells you immediately whether your labels and layout are working.

Pro Tip: For ESS internal assessments, draw your stock-and-flow diagram by hand first, then recreate it digitally using Lucidchart or Miro. The manual step forces you to think about every component before committing to a final version.

How system diagrams apply to academic and ESS coursework

System diagrams are not just a presentation tool. They are an analytical method that helps you think more clearly about environmental problems. In IB ESS, you are expected to apply systems thinking across topics including biodiversity, climate change, pollution, and resource management. A well-constructed diagram demonstrates that understanding directly to your examiner.

Here are specific ways system diagrams appear in ESS academic work:

• Internal assessments: Students often use system context diagrams to define the scope of their investigation. For example, if you are studying eutrophication in a local lake, a context diagram shows the lake as the central system, with agricultural runoff, sunlight, and aquatic species as external inputs and outputs.
• Stock-and-flow diagrams for dynamic modeling: The accumulation principle in stock-and-flow diagrams is fundamental for accurate representation of environmental systems. Stocks like forest biomass or atmospheric CO2 do not respond instantly to changes in flow. Showing that delay in your diagram demonstrates a sophisticated understanding of system behavior.
• Extended essays: A system context diagram in the introduction of an ESS extended essay immediately signals to the examiner that you understand the boundaries of your research question. It also helps you stay focused on what is inside and outside your analysis.
• Presentations and reports: Diagrams replace paragraphs of explanation. A single stock-and-flow diagram of a carbon cycle communicates more than 200 words of prose and is far more memorable for an audience.

For further support on applying these tools in your coursework, the systems approach for IB ESS offers targeted guidance aligned with exam requirements. You can also explore environmental literacy concepts to strengthen the theoretical foundation behind your diagrams.

Key takeaways

System diagrams are most effective when each type is used for a specific purpose, labeled precisely, and built in layers from boundary to detail.

Why I think students underestimate the power of a good diagram

I have worked with IB ESS students for over 13 years, and one pattern repeats itself constantly. Students spend hours writing detailed explanations of environmental systems, then add a diagram as an afterthought. That order is backwards. The diagram should come first. It forces you to decide what is actually inside your system, what the key flows are, and where the boundaries sit. Once that is clear on paper, the written explanation almost writes itself.

The students who struggle most with system diagrams are usually trying to show everything in one graphic. They cram stocks, flows, external actors, feedback loops, and labels into a single crowded image. The result confuses both the reader and the student. My advice is always the same: if your diagram takes more than two minutes to explain verbally, split it into two diagrams.

I also encourage educators to use system diagrams as a teaching tool before asking students to create them. Walk through a stock-and-flow diagram of a simple system, like a bathtub filling and draining, before moving to atmospheric carbon or species population dynamics. That concrete starting point removes the intimidation and builds the mental model students need. Mastering system diagrams is not about artistic skill. It is about clear thinking, and that is something every student can develop with practice.

— Marija

Ready to strengthen your ESS coursework?

If you are preparing for your IB ESS internal assessment or extended essay, understanding how to construct and interpret system diagrams is one of the highest-value skills you can build right now. At Esstutor, personalized tutoring sessions cover exactly these skills, from drawing your first context diagram to applying stock-and-flow models in a full investigation.

Explore the ESS extended essay guide to see how system diagrams fit into a high-scoring extended essay structure. You can also browse internal assessment examples to see how other students have applied these tools effectively. If you want hands-on support, book a trial lesson with Esstutor and get personalized feedback on your diagrams from an experienced IB examiner.

FAQ

What is a system diagram in simple terms?

A system diagram is a visual model that shows the components of a system, how they connect, and how information or materials flow between them. It replaces lengthy written descriptions with a clear, labeled graphic.

What are the main types of system diagrams for ESS students?

The most relevant types for ESS students are system context diagrams, stock-and-flow diagrams, and data flow diagrams. Stock-and-flow diagrams are especially useful for modeling environmental dynamics like carbon accumulation or population change.

How do you read a system diagram quickly?

Start by identifying the system boundary, then read the arrow labels to understand what flows in and out. A well-designed diagram should communicate its main idea within about two minutes.

Why are unlabeled arrows a problem in system diagrams?

Unlabeled arrows remove critical information about what is moving through the system and in which direction. Strong arrow labeling is the single most important factor in making a system diagram readable and academically credible.

How do stock-and-flow diagrams differ from other system diagrams?

Stock-and-flow diagrams specifically model accumulations and rates of change over time, capturing the dynamic behavior of a system. Unlike context diagrams, which show boundaries, stock-and-flow diagrams show how quantities build up or deplete, making them ideal for environmental systems analysis.
